HeatCO2OL™ Commercial

The right natural solution for domestic hot water preparation, commercial heat pump and chiller with low environmental impact.

BENEFITS AT A GLANCE

  • Uses CO2 natural refrigerant
  • Up to 90°C hot water production
  • High efficiency / COP
  • Up to 2 levels of water temperature on the same unit


Profroid HeatCO2OL logo
  • Uses CO2 natural refrigerant
  • Not affected by the EU F-Gas Regulation
  • Up to 90°C hot water production
  • Compatible with low water inlet temperature and high temperature lift
  • Heat source from 20°C to -40°C
  • Simultaneously 2 different temperature levels on the heating side and one level on the cooling side
  • Semi-hermetic compressors, Inverter driven compressor N°1 (optional for N°2)
  • Multiple compressors/ heat exchanger configurations and options  to suit your needs at best
  • Integrated PLC, large touch screen HMI, Connectable for remote monitoring, preventive maintenance and BMS
  • Optimized footprint
  • Numerous options available
    • Sound proofing
    • Energy measurement
    • Smart control for several units in parallel
    • And many other ones

Nb of compressors :

  • 2 to 6 compressors depending on capacity and heat source temperature

Dimensions

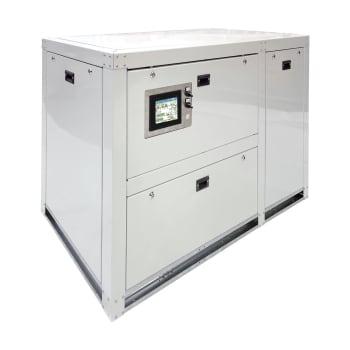

  • Size CS : W 800 x L 1900 x H 1250 mm

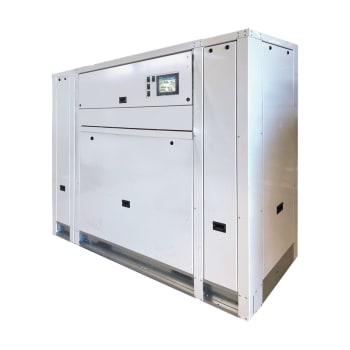

  • Size CM : W 800 x L 2940 x H 1950 mm

Heating Capacity

  • 400 to 250 kW

Cooling Capacity

  • 30 to 200 kW
  • Uses CO2 natural refrigerant
  • Not affected by the EU F-Gas Regulation
  • Up to 90°C hot water production
  • Compatible with low water inlet temperature and high temperature lift
  • Heat source from 20°C to -40°C
  • Simultaneously 2 different temperature levels on the heating side and one level on the cooling side
  • Semi-hermetic compressors, Inverter driven compressor N°1 (optional for N°2)
  • Multiple compressors/ heat exchanger configurations and options  to suit your needs at best
  • Integrated PLC, large touch screen HMI, Connectable for remote monitoring, preventive maintenance and BMS
  • Optimized footprint
  • Numerous options available
    • Sound proofing
    • Energy measurement
    • Smart control for several units in parallel
    • And many other ones

Nb of compressors :

  • 2 to 6 compressors depending on capacity and heat source temperature

Dimensions

  • Size CS : W 800 x L 1900 x H 1250 mm
  • Size CM : W 800 x L 2940 x H 1950 mm

Heating Capacity

  • 400 to 250 kW

Cooling Capacity

  • 30 to 200 kW
